INSTRUMENTATION
In-hanger inspection and in-field servicing of console instrumentation, in particular removing and refitting.electrical, electro-mechanical and electronic modules, and systems function indicators, etc.

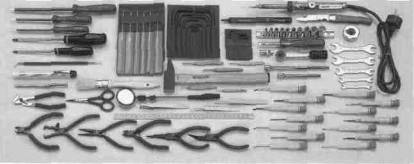

CU.AE52 "Instrumentation" set
92 tools supplied loose.
Weight: 3,500 kg,
| Qty | Description | |
| 22.JU5T | 5 | Midget open-end wrenches 3/16" to 9/16" |
| R.151 | 1 | Ratchet 1/4" |
| R.150 | 1 | Handwheel ratchet 1/4" |
| R.226 | 1 | Spinner handle 1/4" |
| R.210 | 1 | Extension 1/4", 100 mm long |
| R.215 | 1 | Extension 1/4", 150 mm long |
| R.240A | 1 | Universal joint 1/4" |
| ACP | 2 | Screwdrivers for Phillips heads no. 1 and 2 |
| AY | 3 | Sleeved-shank screwdrivers |
| for slotted heads 3,5 to 5,5 mm | ||
| 82JU10 | 10 | Hexagonal keys 1/16" to 3/8" |
| 178A.CP | 1 | Compact multigrip pliers |
| 405.10 | 1 | Diagonal cutters |
| 430 | 1 | Flush-cutting pliers |
| 421 | 1 | Flat nose pliers |
| 402 | 1 | Long half-round nose pliers |
| 403 | 1 | Half-round angle nose pliers |
| 194.12 | 1 | Wire strippers |
| 1116A.BW | 1 | Dual-rating soldering iron |
| 839A.0 | 1 | Desoldering pump |
| 840.1 | 1 | Electricians knife |
| AS.6L160T2 | 6 | Needle files |
| 200A.24 | 1 | Hammer |
| 251A | 5 | Drift punches Ø 1 to 3 mm |
| 803 | 1 | Stainless rule |
| AEF.J3 | 8 | "Micro-Tech" screwdrivers for slotted heads |
| 2 to 4 mm and Phillips heads no. 00 to 1 | ||
| 84E.J2 | 6 | "Micro-Tech" hexagonal drivers |
| 1 | 1/16" to 1/32" and 1,5 to 2,5 mm | |
| 142.2 | 1 | Angle-nose tweezers |
| 144 | 1 | Straight-nose tweezers |
| 139 | 1 | End-cutting tweezers |
| 841.1 | 1 | Short snipping scissors |
| 834 | 1 | Mirror Ø 24 mm |
| 835A | 1 | Spring hook |
| 836 | 1 | Pen light |
| 826.0 | 1 | Mechanical retriever |
| 1830.1 | 1 | Brush |
| RB.40U | 10 | OGV® 12-point 1/4" sockets, 3/16" to 9/16" |
| 85JU10 | 10 | Bristol keys 0,333 to 0,183 |
2038.UAE52"Instrumentation"
set
92 tools supplied in case BV.20A.see F92 catalog p. 79.
Weight: 7,700 kg
