AIRFRAME
In-hanger inspection and in-field servicing of console instrumentation, in particular removing and refitting.electrical, electro-mechanical and electronic modules, and systems function indicators, etc.

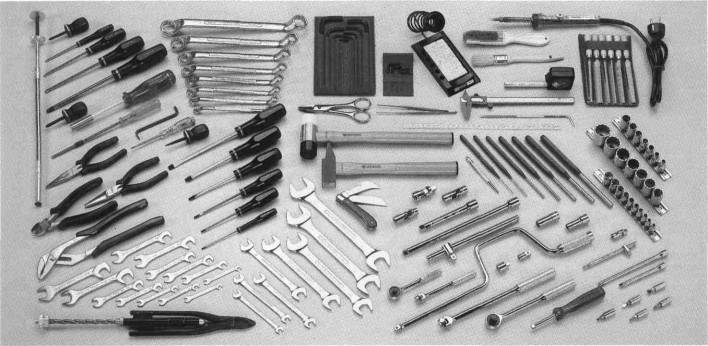

CU.AE53 "Airframe Maintenance" set
147 tools supplied loose.
Weight: 15,000 kg. Contents as below.
| Qty | Description | |
| 44.JU8 | 8 | Open-end wrenches 1/4" to 1+1/16" |
| 34.JU13T | 13 | Midget open-end wrenches 1/16" to 1+1/6" |
| 55.JU8 | 8 | OGV® ring wrenches 1/4" to 15/16" |
| R.210 | 1 | Extension 1/4" 100 mm long |
| R.215 | 1 | Extension 1/4", 150 mm long |
| R.I 20 | 1 | Sliding tee 1/4" |
| R.240A | 1 | Universal joint 1/4" |
| R.226 | 1 | Spinner handle 1/4" |
| R.232 | 1 | Coupler 1/4" to 1/8" |
| JL | 2 | Long-reach 3/8" sockets, 3/8" and 7/16" |
| J.120 | 1 | Sliding tee 3/8" |
| J.210 | 1 | Extension 3/8", 125 mm long |
| J.215 | 1 | Extension 3/8", 250 mm long |
| J.240A | 1 | Universal joint 3/8" |
| J.230 | 1 | Coupler 3/8" to 1/4" |
| AC | 3 | Screwdrivers for slotted heads 2 to 4 mm |
| ACH | 3 | Screwdrivers for slotted heads 5,5 to 8 mm |
| ACP | 4 | Screwdrivers for Phillips® heads no, 0 to 3 |
| ACPB | 2 | Stubby screwdrivers for Phillips® heads no. 1 and 2 |
| 83 | 1 | Long-reach hexagonal key 3/64" |
| 83JU10 | 10 | Hexagonal keys 1/l6" to 3/8" |
| R.155 | 1 | Ratchet 1/4" |
| J.155 | 1 | Ratchet 3/8" |
| R.145 | 1 | Hinged handle 1/4" |
| RB.40U | 10 | OGV® 12-point 1/4" sockets, 1/l6" to 3/8" |
| JB | 12 | OGV® 12-point 3/8"-sockets, 1/4" to 7/8" |
| JF | 2 | Hinged 3/8" sockets, 3/8" and 7/16" |
| J.145 | 1 | Hinged handle 3/8" |
| J.115 | 1 | Speed brace 3/8" |
| 85.JU10 | 10 | Bristol keys 0,333 to-0,183 |
| RS | 3 | Bits for slotted heads 4 to 8 mm |
| RP | 2 | Bits for Phillips® heads no. 1 and 2 |
| ACB | 1 | Stubby screwdriver for slotted heads 6,5 mm |
| AFM.1 | 1 | Magnetic screwdriver with 6 interchangeable bits |
| AF | 1 | Screw starter |
| ARZ | 1 | Offset screwdriver for slotted heads 5,5 mm |
| AV.HT2B | 1 | Voltage-tester screwdriver |
| 188.16CPY | 1 | Flat-nose pliers |
| 193.16CPY | 1 | Half-round nose pliers |
| 392.16CPY | 1 | Diagonal cutters |
| 180A.CPY | 1 | Multigrip pliers |
| 1116A.BW | 1 | Dual-rating soldering iron |
| 1141.1 | 1 | Soldering-iron stand |
| 826.1 | 1 | Mechanical retriever |
| 841 | 1 | Electricians scissors |
| 843 | 1 | Twin-blade electricians knife |
| CLE.MD AM | 6 | Second-cut files |
| 200A.28 | 1 | Hammer |
| 208A.32BC | 1 | Plastic mallet |
| 248.JT7 | 7 | Drift punches 2 to 10 mm |
| 256.2,5 | 1 | Centre punch |
| 815A | 1 | Vernier calipers |
| 234 | 1 | Scriber |
| 1712 | 1 | 2m tape rule |
| 803 | 1 | Stainless rule |
| 270A | 1 | Wire brush |
| 150 | 1 | Straight-nose tweezers |
| 1830.1 | 1 | Brush |
| 445.10" | 1 | Locking-wire pliers |
2046.UAE53"Airframe
maintenance " set
147 tools supplied in chest BT.13: see F92 catalog p.90
Weight: 20,000 kg (Contents as above)
